Mill vs. Lathe: Which is Better for Your Needs?

Milling machines and lathes are crucial in modern manufacturing, each with distinct functions. Milling machines use rotating tools to remove material from a stationary workpiece, ideal for creating flat surfaces and complex shapes. Lathes rotate the workpiece against a stationary tool, making them perfect for machining cylindrical parts with high precision.

While mills are versatile and handle intricate designs, lathes excel in producing symmetrical, precise components. Choosing the right machine depends on the machining requirements, workpiece shape, and production volume. Both benefit from CNC technology, improving precision and efficiency.

This article explores the key differences between milling machines and lathes, comparing their functions, applications, and suitability for various tasks.

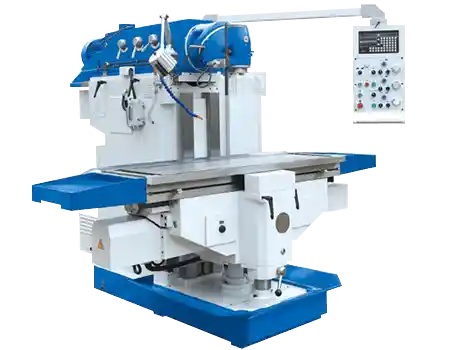

I.What is a Milling Machine?

A milling machine is a versatile tool used for machining solid materials. It works by rotating a cutting tool to remove material from a stationary workpiece. Milling machines are essential for creating flat, complex surfaces and intricate designs with high precision.

1.Working Principle of Milling Machines

In a milling machine, the cutting tool rotates around a spindle axis, while the workpiece is fed against the tool to remove material. This setup allows for the creation of complex geometries, flat surfaces, and detailed shapes.

2.Types of Milling Machines

Vertical Milling Machine: Features a vertically oriented spindle and is ideal for precision cuts.

Horizontal Milling Machine: Equipped with a horizontal spindle, ideal for heavy cuts and larger workpieces.

Gantry Milling Machine: Known for large workpieces, offering stability for heavy-duty tasks.

CNC Milling Machine: Uses computerized controls for precise, repeatable operations, suitable for high-precision tasks.

3.Main Components of Milling Machines

Spindle: Rotates the cutting tool.

Worktable: Holds and moves the workpiece.

Cutting Tool: Removes material from the workpiece.

Feed Mechanism: Controls the movement of the tool or workpiece during machining.

4.Applications of Milling Machines

Mold Making: Used for creating precise molds in various manufacturing processes.

Automotive Parts Production: Ideal for precision machining of automotive components.

Aerospace and Electronics: For detailed, high-precision parts.

II.What is a Lathe?

A lathe is a machine tool that rotates a workpiece against a stationary cutting tool. This setup is ideal for producing cylindrical and conical parts with high precision. Lathes are widely used in industries where symmetry and uniformity are crucial.

1.Working Principle of Lathes

Lathes rotate the workpiece on an axis while a stationary cutting tool removes material, shaping the workpiece into a precise form. This method allows for producing cylindrical parts like shafts, rods, and threads.

2.Types of Lathes

Horizontal Lathe: Commonly used for general-purpose turning operations, versatile for a wide range of tasks.

Vertical Lathe: Suitable for larger, heavier workpieces that require stability.

CNC Lathe: A computer-controlled lathe for high precision and repeatability, ideal for detailed machining.

Lathe-Milling Combination Machines: Combine lathe and milling operations, saving time and space.

3.Main Components of Lathes

Chuck: Holds the workpiece in place.

Tool Post: Where the cutting tool is mounted.

Spindle: The rotating axis that drives the workpiece.

4.Applications of Lathes

Shaft Manufacturing: For creating precise shafts in mechanical systems.

Thread Cutting: Essential for producing threaded components with high precision.

Other Industries: Used in jewelry making, automotive parts, and woodworking.

III.Comparison of Milling Machines and Lathes

1.Working Principle Comparison

Milling Machines: The cutting tool rotates while the workpiece stays stationary, allowing for the machining of flat, irregular surfaces and intricate features.

Lathes: The workpiece rotates while the cutting tool remains stationary, making them ideal for cylindrical parts.

2.Precision and Efficiency

Milling Machines: Offer higher precision for complex, detailed shapes and are ideal for creating surfaces and irregular shapes.

Lathes: Provide excellent precision for cylindrical parts, with faster speeds for mass production.

3.Complexity of Operation and Technical Requirements

Milling Machines: Typically more complex to operate and require detailed setup and programming, especially with CNC models.

Lathes: Easier to operate but still require skilled operators for precise results, especially when working with complex parts.

4.Maintenance and Upkeep

Milling Machines: Require regular calibration, lubrication, and tool changes for smooth operation.

Lathes: Also need regular maintenance, including inspection of moving parts and lubrication to maintain consistent performance.

IV.Choosing Between Milling Machine and Lathe

1.Choosing Based on Machining Needs

Milling Machines: Ideal for tasks that require the creation of complex shapes, detailed features, and irregular surfaces.

Lathes: Best for producing precise cylindrical or conical parts such as shafts, rods, or threads.

2.Cost Considerations

Milling Machines: Generally more expensive due to their versatility and complex design.

Lathes: Typically cost less, but CNC models with additional features can drive up the price.

3.Production Volume and Efficiency Requirements

Milling Machines: More suitable for low-to-medium production volumes, especially when high complexity is involved.

Lathes: Perfect for large-volume production of cylindrical components, offering faster processing speeds for simpler tasks.

4.Operation and Technical Support

Milling Machines: Require more advanced technical knowledge and training for proper operation.

Lathes: Easier to learn, but still require skilled operators to ensure quality machining.

V.Future Trends

1.Development of CNC Technology

Both milling machines and lathes benefit from CNC technology, which enhances precision, repeatability, and efficiency in modern manufacturing processes.

2.New Material Processing Needs

Advances in materials will continue to demand higher precision from both types of machines. Milling machines and lathes will evolve to handle new materials, such as composites and high-strength alloys.

3.Environmental and Energy Considerations

Future manufacturing trends will focus on sustainable practices, reducing waste, and using energy-efficient machines. The integration of green technologies will play a key role in both milling and lathe operations.

Conclusion

Choosing between a milling machine and a lathe depends on your machining needs, workpiece geometry, production volume, and budget. Milling machines are ideal for complex shapes and detailed surfaces, while lathes excel in producing precise cylindrical parts. Both machines benefit from advancements in CNC technology, offering enhanced capabilities for modern manufacturing. By understanding the strengths and applications of each, you can make an informed decision that best suits your business needs.

Frequently Asked Questions Answered

Which is better, a lathe or a mill?

A milling machine is better for machining parts with flat, complex features, while a lathe is more suitable for cylindrical parts. Both machines can be used in tandem for intricate tasks.

Can a mill do everything a lathe can?

While milling machines can handle some tasks traditionally done by lathes, such as cutting cylindrical features, they are generally more suitable for non-cylindrical shapes. Lathes are typically faster and more precise for cylindrical and symmetrical parts.
